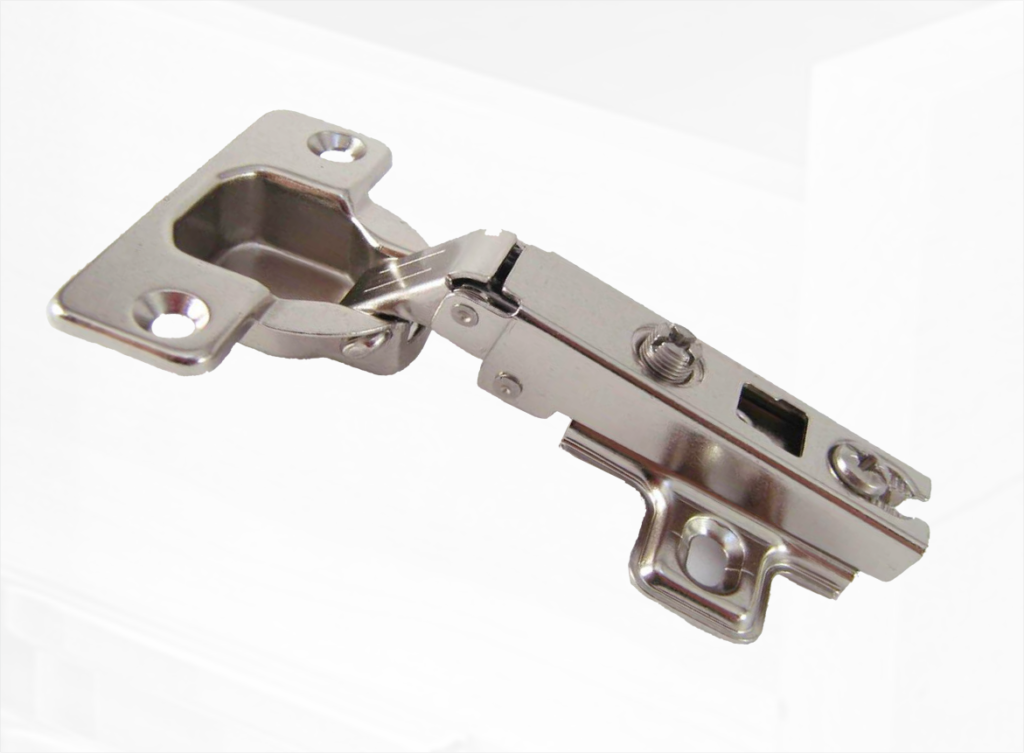

AUTO CLOSE HINGES
Finish: Nickel
Material: Cold rolled Steel
Specifications:
- Degree of Opening: 108°
- Degree of Opening: 86°-87.5°
- Closing Action: Two way
- Hole pitch of cup: 48mm
- Hole pitch of plate: 32mm
- Edge spacing: 37mm
- Cup Depth: 11.5mm
- Cup Diameter: 35mm
- Door Thickness: 14-28mm
- Weight: 60g per piece

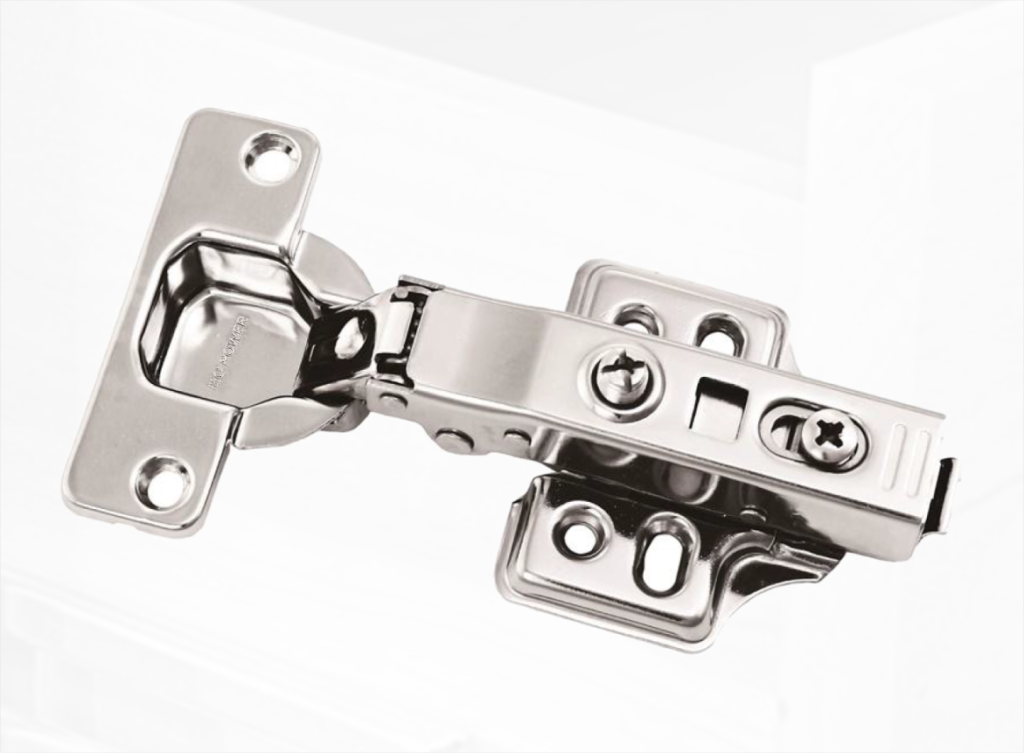

SOFT CLOSE HINGES-STEEL
Finish: Nickel
Material: Cold rolled Steel
Specifications:
- Degree of Opening: 98°
- Degree of Opening: 86°-87.5°
- Closing Action:
- Hydraulic- soft closing
- Hole pitch of cup: 48mm
- Hole pitch of plate: 32mm
- Edge spacing: 37mm
- Cup Depth: 11.5mm
- Cup Diameter: 35mm
- Door Thickness: 14-28mm
- Weight: 160g per piece

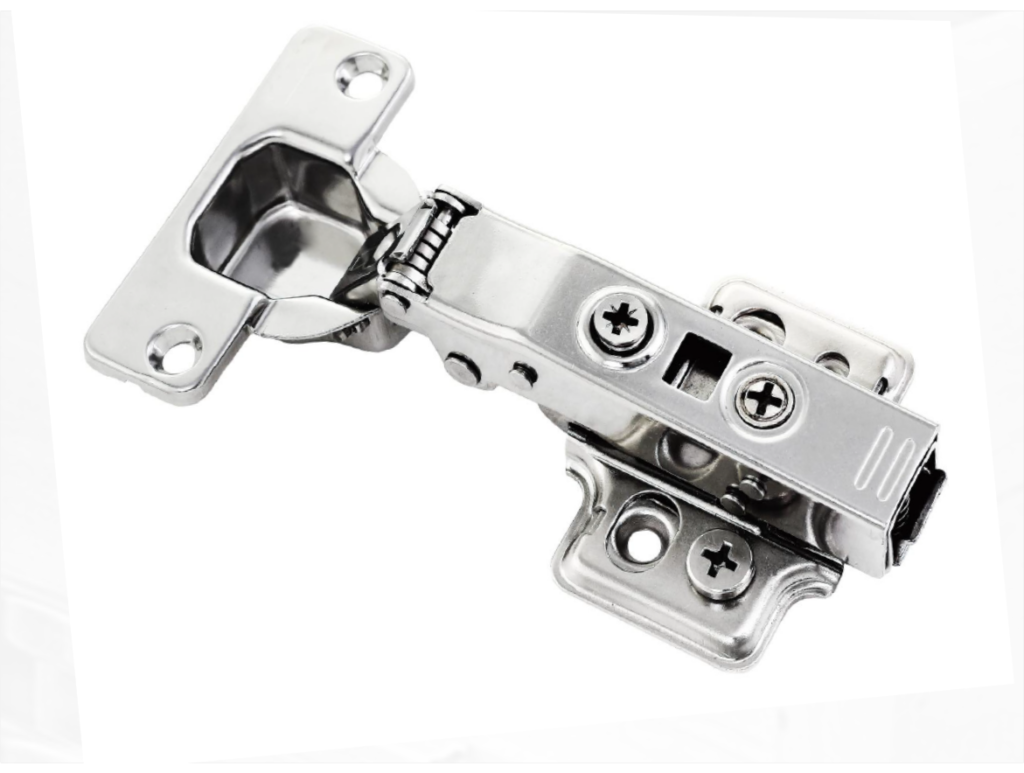

SOFT CLOSE HINGES-3D
Finish: Nickel
Material: Cold rolled Steel
Specifications:
- Degree of Opening: 98°
- Degree of Opening: 86°-87.5°
- Closing Action:
- Hydraulic- soft closing
- Hole pitch of cup: 48mm
- Hole pitch of plate: 32mm
- Edge spacing: 37mm
- Cup Depth: 11.5mm
- Cup Diameter: 35mm
- Door Thickness: 14-28mm
- Weight: 160g per piece

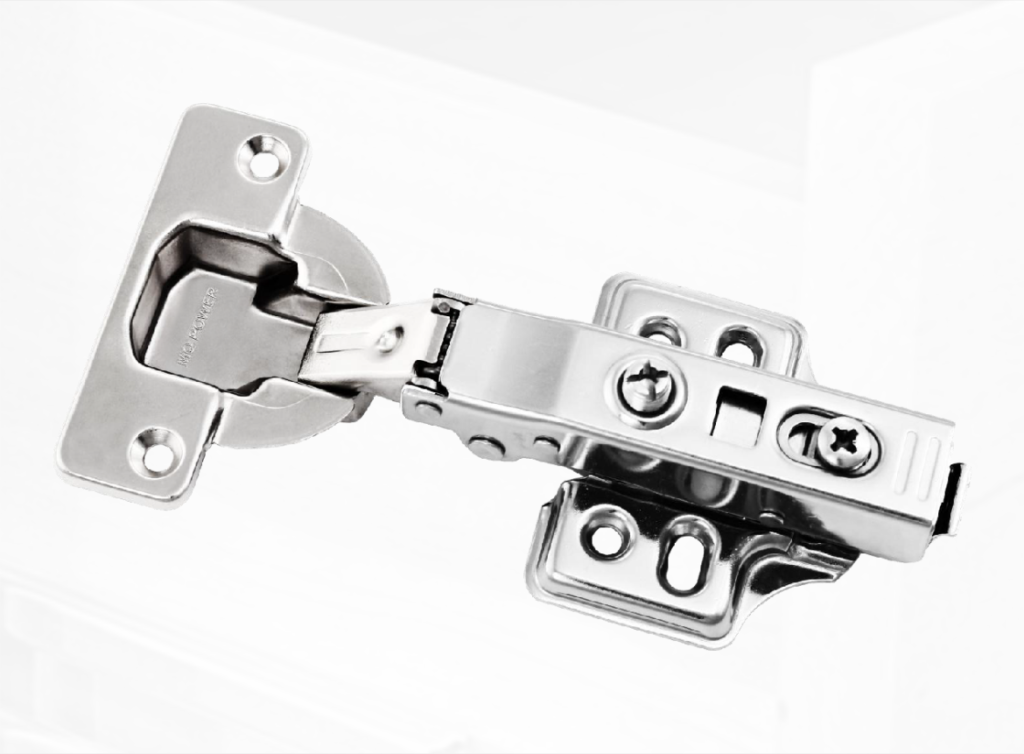

SOFT CLOSE HINGES-THICK DOOR
Finish: Nickel
Material: Cold rolled Steel
Specifications:
- Degree of Opening: 98°
- Degree of Opening: 86°-87.5°
- Closing Action:
- Hydraulic- soft closing
- Hole pitch of cup: 52mm
- Hole pitch of plate: 32mm
- Edge spacing: 37mm
- Cup Depth: 13mm
- Cup Diameter: 40mm
- Door Thickness: 20-40mm
- Weight: 106g per piece

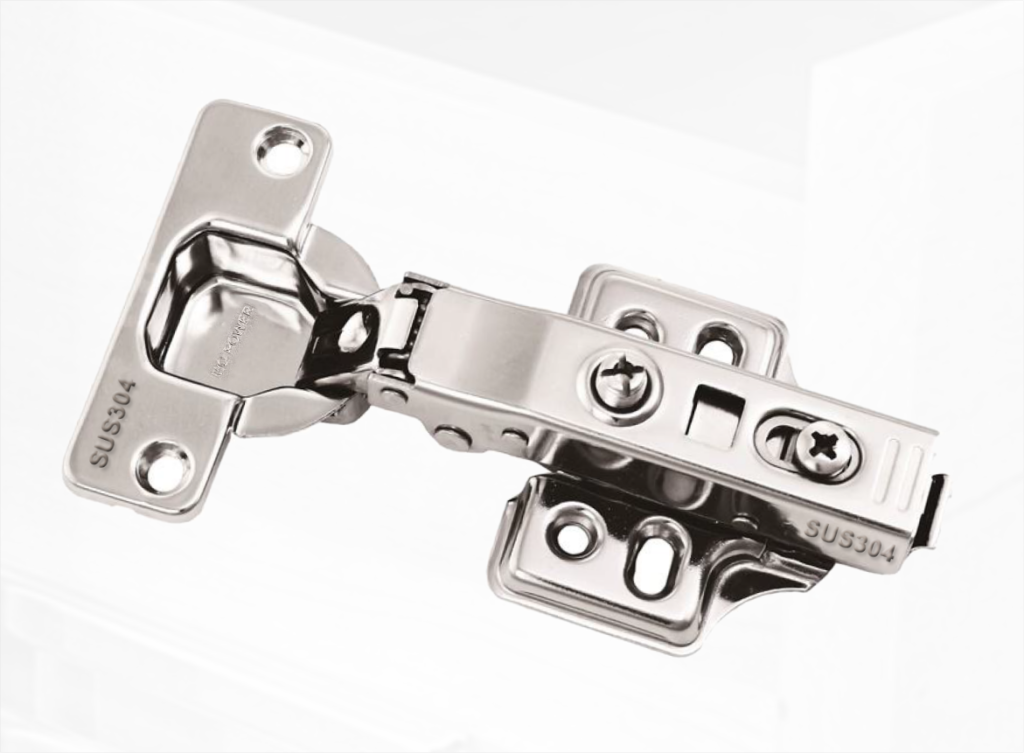

SOFT CLOSE HINGES-SS304
Finish: Water Polishing
Material: SS304
Specifications:
- Degree of Opening: 98°
- Degree of Opening: 86°-87.5°
- Closing Action:
- Hydraulic- soft closing
- Hole pitch of cup: 48mm
- Hole pitch of plate: 32mm
- Edge spacing: 37mm
- Cup Depth: 13mm
- Cup Diameter: 35mm
- Door Thickness: 15-32mm
- Weight: 106g per piece
GAS PUMP
AVAILABLE SIZES : 9″
WEIGHT CAPACITY : 5KGS/10KGS/15KGS/20KGS
